Toque Tube Single Axis Tracker Controller DC300V Sun Tracking Solar System

Single Axis Tracker Controller Night Reposition Wind Protection

Working principle:
Single axis tracker controller which is mainly applied in the mid and low latitude areas, In single axis solar trackers, a long horizontal torque tube is supported on bearings mounted upon frames. PV modules are mounted upon the torque tube, and the tube will rotate on its axis to track the apparent motion of the sun through the day. Stationary mounts, which hold panels in a fixed position, can have their productivity compromised when the sun passes to a less-than-optimal angle. Compensating for this, solar trackers automatically move to track the path of the sun across the sky, thereby maximizing output.

With our solar tracker control system you maximize your return on investment by cutting installation time and maintenance cost. Our controller makes sure that your panels are pointing the sun at best in any weather condition to maximize the energy output, and minimize the energy spent to move the tracker.

Technical Parameters of Single Axis Tracker Controller Night Reposition Wind Protection

Advantage:

1. Compatible with different foundation solutions: concrete piles, predrilling, screw pile.

2. Compatible with all PV modules (framed, glass-glass, thin-film, bifacial)

3. Preassembled joints and components.

4. Minimum installation time, fast & simple.

5. High tolerances to foundation positioning error.

6. 100% bolted connections. No drilling, cutting, or welding on-site.

7. High tracking accuracy, average tracking accuracy is ≤1°

8. The interval time of continuous tracking is adjustable;

9. Can execute to scheduled homing position in cloudy day or at night;

10. Users can add external limit switch as needed;

11. Can move to scheduled position when there is wind ;

12. East-West orientation limiting ;

13. Wrong battery pole connection protection, with over-current protection fuse;

Functions:

1. Smart control algorithm. Adopt time control + angle sensor to form closed-loop control, no Angle accumulation error, high-precision and reliable tracking;

2. Comprehensive protection mechanism. Wind protection, snow protection, limit protection, over-current protection, over/under- voltage protection, etc;

3. Fault self-diagnosis mechanism. System automatic detection, automatic judgment, automatic alarm, automatic recovery after troubleshooting, etc;

4. Modular design, easier for on-site troubleshooting and maintenance;

5. Working temperature: -40℃ ~ 70℃;

6. Protection grade IP68, suitable for all kinds of outdoor environments;

About us:

Good Future Solar is a fast growing solar company headquartered in China, specializes in solar tracking systems, we design and manufacture high quality trackers at a competitive cost. We also provide a wide range of services, adapted to each project’s requirements. Our products have a reputation for reliability, cost competitiveness and advanced technology.

Toque Tube Single Axis Tracker Controller

DC300V sun tracking solar system

Toque Tube sun tracking solar system

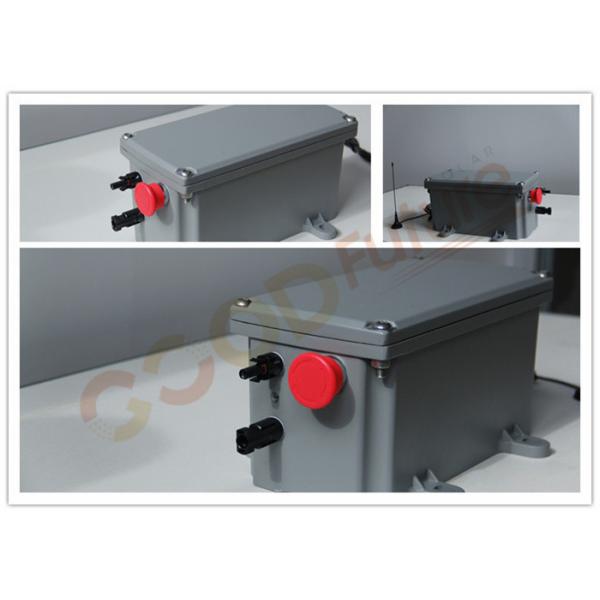

Toque Tube Single Axis Tracker Controller DC300V Sun Tracking Solar System Images
